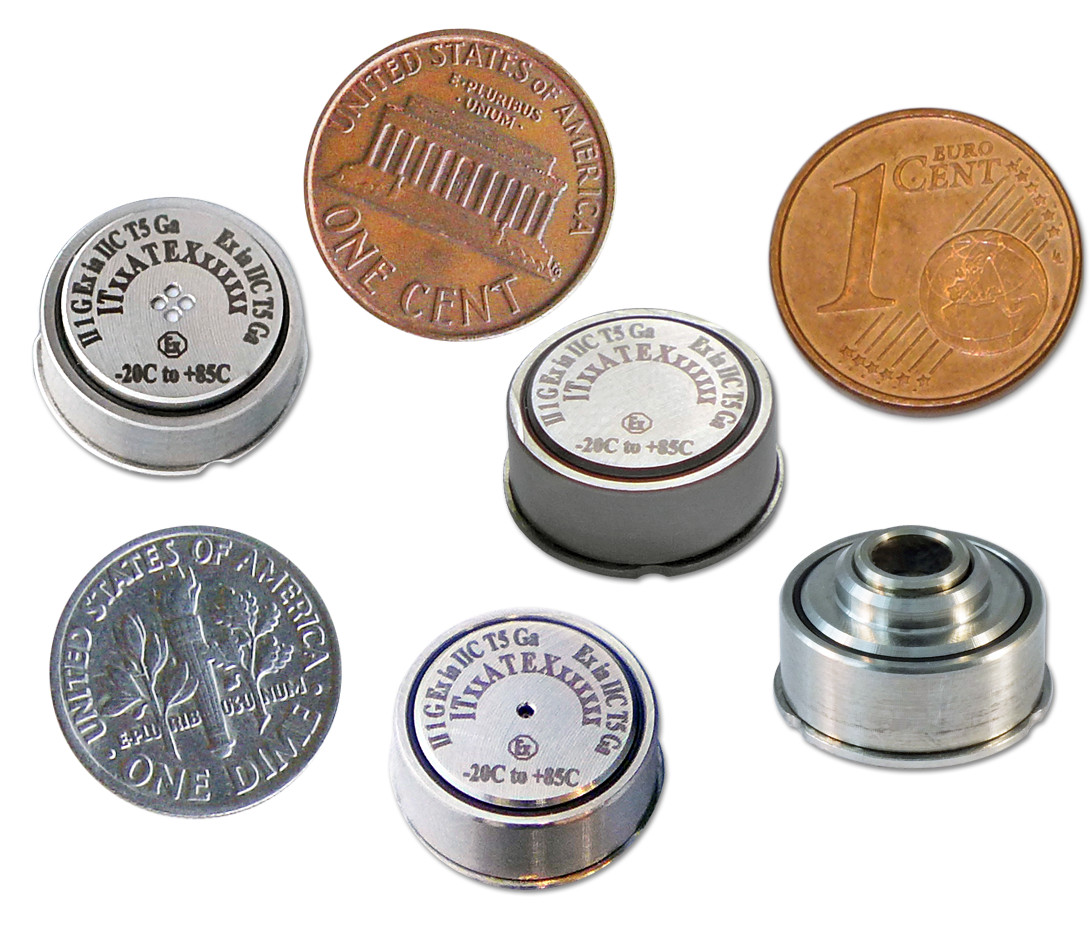

PyroButton-X
- We offer the smallest (17mm x 6-10mm), cGMP compliant (calibrated & 21 CFR Part 11 compliant), most accurate, having the best reproducibility, and cost effective data-loggers.
They are rugged, self-sufficient devices that measure temperature or temperature/humidity or pressure and record the result in a protected memory section. The recording is done
at a user-defined rate, both as a direct storage of the measurement values as well as in the form of a histogram.
Every PyroButton is factory imprinted utilizing laser technology with a guaranteed unique 64-bit registration number that allows for absolute traceability.
The durable stainless-steel package is highly resistant to environmental hazards such as dirt, moisture, and shock. Accessories permit the PyroButton to be mounted on almost any object,
including people, equipment, containers, solutions, pallets, and bags.
Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device!
Key Benefits to the User
Each data-logger is calibrated at 5-pints relative to NIST reference and the calibration is verified prior to shipment
Each measurement is corrected relative to the calibration curve
Data integrity protection for 21 CFR Part 11 requirement
Improved laser engraving for enhanced visibility of identifiers including QR code
Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation
The electronics are sealed and protected up to IP68 and 700 kPa (7 Bar) load from corrosive environments, such as Ethylene Oxide (EO). Suitable for EO sterilization
Intrinsically safe versions are available
Calibration corrections are automatically calculated for each temperature measurement
Certificate of Calibration is included for each data-logger
The data-loggers can be chemically sterilized & depyrogenated due to their hermetically sealed stainless steel housing
High Throughput Adapters are available, which hold 4, 28, or 60 data-loggers for simultaneous programming or downloading of data
The data-loggers can be integrated to Self-powered communication network for global data management
Critical Control Points can be determined by utilizing Computer Aided Temperature distribution mapping program
Data-acquisition simulation ensures optimized battery life span
PyroButton-X is easy to learn and simple to operate
PyroButton-XL (PBX/L) Calibrated Low-Temperature data-logger Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing.) It is the smallest advanced self-powered temperature data-logger on the market. Advancements:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to IP68 and 700 kPa (7 Bar) load from corrosive environments. Weight: 6.01 g Volume: 1.56 cm3 Ingress Protection rating: IP68 Dynamic Temperature range: -40 to 85°C Temperature resolution: ±0.0078°C Memory capacity at 0.0078°C resolution: 119700 readings Enhanced Regulatory Compliance: Calibrated at 5-points relative to NIST or International reference. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Data acquisition rate: 1s to 24 hrs
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
312 /each
each
100-PBX-001-100
PyroButton-XiL (PBXi/L) Calibrated Low-Temperature data-logger Intrinsically Safe. Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing.) It is the smallest advanced self-powered temperature data-logger on the market. Advancements:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to IP68 and 700 kPa (7 Bar) load from corrosive environments, such as Ethylene Oxide (EO). Suitable for EO sterilization.
Suitable for EO sterilization. Weight: 6.01 g Volume: 1.56 cm3 Ingress Protection rating: IP68 Dynamic Temperature range: -40 to 85°C Temperature resolution: ±0.0078°C Memory capacity at 0.0078°C resolution: 119700 readings Enhanced Regulatory Compliance: Calibrated at 5-points relative to NIST or International reference. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Data acquisition rate: 1s to 24 hrs
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
355 /each
each
100-PBX-002-100
PyroButton-XE (PBX/E) Calibrated High-Temperature data-logger Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing.) It is the smallest advanced self-powered temperature data-logger on the market. Advancements:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to IP68 and 700 kPa (7 Bar) load from corrosive environments. Weight: 6.01 g Volume: 1.56 cm3 Ingress Protection rating: IP68 Dynamic Temperature range: 0 to 150°C Temperature resolution: ±0.0078°C Memory capacity at 0.0078°C resolution: 119700 readings Enhanced Regulatory Compliance: Calibrated at 5-points relative to NIST or International reference. Measurements are corrected relative to the calibration data. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Data acquisition rate: 1s to 24 hrs
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
520 /each
each
100-PBX-003-100
PyroButton-XTH (PBX/TH) Calibrated Temperature & Humidity data-logger Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing.) It is the smallest advanced self-powered temperature data-logger on the market. Advancements:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to IP68 and 700 kPa (7 Bar) from corrosive environments. Weight: 5.64 g Volume: 1.56 cm3 Ingress Protection rating: IP68 Dynamic Temperature range: -40 to 85°C Temperature resolution: ±0.0025°C Memory capacity at 0.0078°C resolution: 59800 readings Enhanced Regulatory Compliance: Calibrated at 5-points relative to NIST or International reference. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Dynamic Humidity range at 25°C: 0 to 100%RH Humidity resolution: ±0.04 %RH Memory capacity at 0.04 resolution: 59800 readings Calibrated Humidity accuracy (uncertainty): ±1.5 %RH
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
556 /each
each
100-PBX-103-100
PyroButton-XiTH (PBXi/TH) Calibrated Temperature & Humidity data-logger Intrinsically Safe. Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing.) It is the smallest advanced self-powered temperature data-logger on the market. Advancements:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to 700 kPa (7 Bar) from corrosive environments, such as Ethylene Oxide (EO). Suitable for EO sterilization. Weight: 5.64 g Volume: 1.56 cm3 Ingress Protection rating: IP68 Dynamic Temperature range: -20 to 85°C Temperature resolution: ±0.0025°C Memory capacity at 0.0078°C resolution: 59800 readings Enhanced Regulatory Compliance: Calibrated at 5-points relative to NIST or International reference. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Dynamic Humidity range at 25°C: 0 to 100%RH Humidity resolution: ±0.04 %RH Memory capacity at 0.04 resolution: 59800 readings Calibrated Humidity accuracy (uncertainty): ±1.5 %RH
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
650 /each
each
100-PBX-004-100
PyroButton-XPE (PBX/PE) Calibrated High-Temperature and High-Pressure data-logger Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 10.2 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing.) It is the smallest advanced self-powered temperature data-logger on the market. Advancements:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to 700 kPa (7 Bar) from corrosive environments. Suitable for Steam and Heat sterilization. Weight: 6.56 g Volume: 2.12 cm3 Dynamic Temperature range: 0 to 150°C Temperature resolution: ±0.015°C Memory capacity at 0.0078°C resolution: 59800 readings Enhanced Regulatory Compliance: Calibrated at 5-points relative to NIST reference or equivalent International Reference. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Dynamic Pressure range: 1 to 700 kPa Pressure resolution: 120 Pa Calibrated accuracy (uncertainty): TBA (to be announced) Data acquisition rate: 1s to 24 hrs
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
952 /each
each
100-PBX-005-100
PyroButton-XTHP (PBX/THP) Calibrated Temperature, Humidity and High-Precision Pressure data-logger Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing).
It is the smallest advanced self-powered temperature, humidity and high sensitivity pressure data-logger on the market. Advancements: Visual identification:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation. Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to 700 kPa (7 Bar) from corrosive environments. Three-in-One/Triple-sensor:In addition to temperature and humidity highly sensitive/high resolution pressure
sensor provide small pressure changes. Weight: 5.89 g Volume: 1.56 cm3 Dynamic Temperature range: -40 to 85°C Temperature resolution: ±0.005°C Memory capacity at 0.0078°C resolution: 29900 readings Enhanced Regulatory Compliance: Calibrated at 5-temperature points relative to NIST reference and 5-humidity points. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Dynamic Humidity range at 25°C: 0 to 100% RH Humidity resolution: 0.008 %RH Calibrated Humidity accuracy (uncertainty): ±1.5%RH Dynamic Pressure range: 30 (1) to 110 kPa Pressure resolution: 0.18 Pa Data acquisition rate: 1s to 24 hrs
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
1,037 /each
each
100-PBX-105-100
PyroButton-XiTHP (PBXi/THP) Calibrated High Precision Pressure, Humidity and Temperature data-logger Intrinsically Safe. Minimum quantity purchase is 10. Dimensions: 17 mm diameter x 7.5 mm height Sensor and electronics are housed in a 304 ss food grade housing (i.e., FDA approved for use in food processing).
It is the smallest advanced self-powered temperature, humidity and high sensitivity pressure data-logger on the market. Advancements: Visual identification:Improved laser engraving for enhanced visibility of identifiers including QR code. Battery & sensor are factory replaceable to ensure sustainable and environmentally friendly operation Warning: Do not take apart or try to take apart the PBX data-loggers! It is VERBOTEN! You will cause change in the specification of the device! Electronics integrity:The electronics are sealed and protected up to 700 kPa (7 Bar) from corrosive environments, such as Ethylene Oxide (EO). Suitable for EO sterilization. Three-in-One/Triple-sensor:In addition to temperature and humidity highly sensitive/high resolution pressure
sensor provide small pressure changes. Weight: 5.89 g Volume: 1.56 cm3 Dynamic Temperature range: -20 to 85°C Temperature resolution: ±0.005°C Memory capacity at 0.0078°C resolution: 29900 readings Enhanced Regulatory Compliance: Calibrated at 5-temperature points relative to NIST reference and 5-humidity points. In addition to the calibration results and critical meta data (PB), the verification results and complete meta data are stored in PBX. Calibrated Temperature accuracy (uncertainty): ±0.1°C Dynamic Humidity range at 25°C: 0 to 100% RH Humidity resolution: 0.008 %RH Calibrated Humidity accuracy (uncertainty): ±1.5%RH Dynamic Pressure range: 30 (1) to 110 kPa Pressure resolution: 0.18 Pa Data acquisition rate: 1s to 24 hrs
Measurements are corrected relative to the calibration data. Data integrity protection inclusion for 21 CFR Part 11 requirement.
