Calibrators
|
PyroButton calibrators
|
|
PyroButton line of calibrators have been designed with computer integrated modeling and simulation for optimum performance, reduced gradient, high throughput,and full automation for unattended operation.
|
|

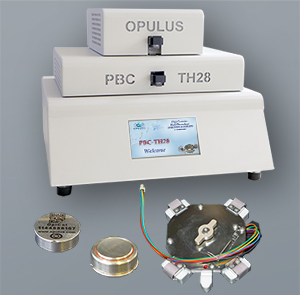

PyroButton-TQM/PBC-TH28 represents a new generation of GMP, 21 CFR Part 11 & ISO 17025 compliant high-performance calibration system,which combines both temperature and humidity calibration within a single unit.
|
|
|

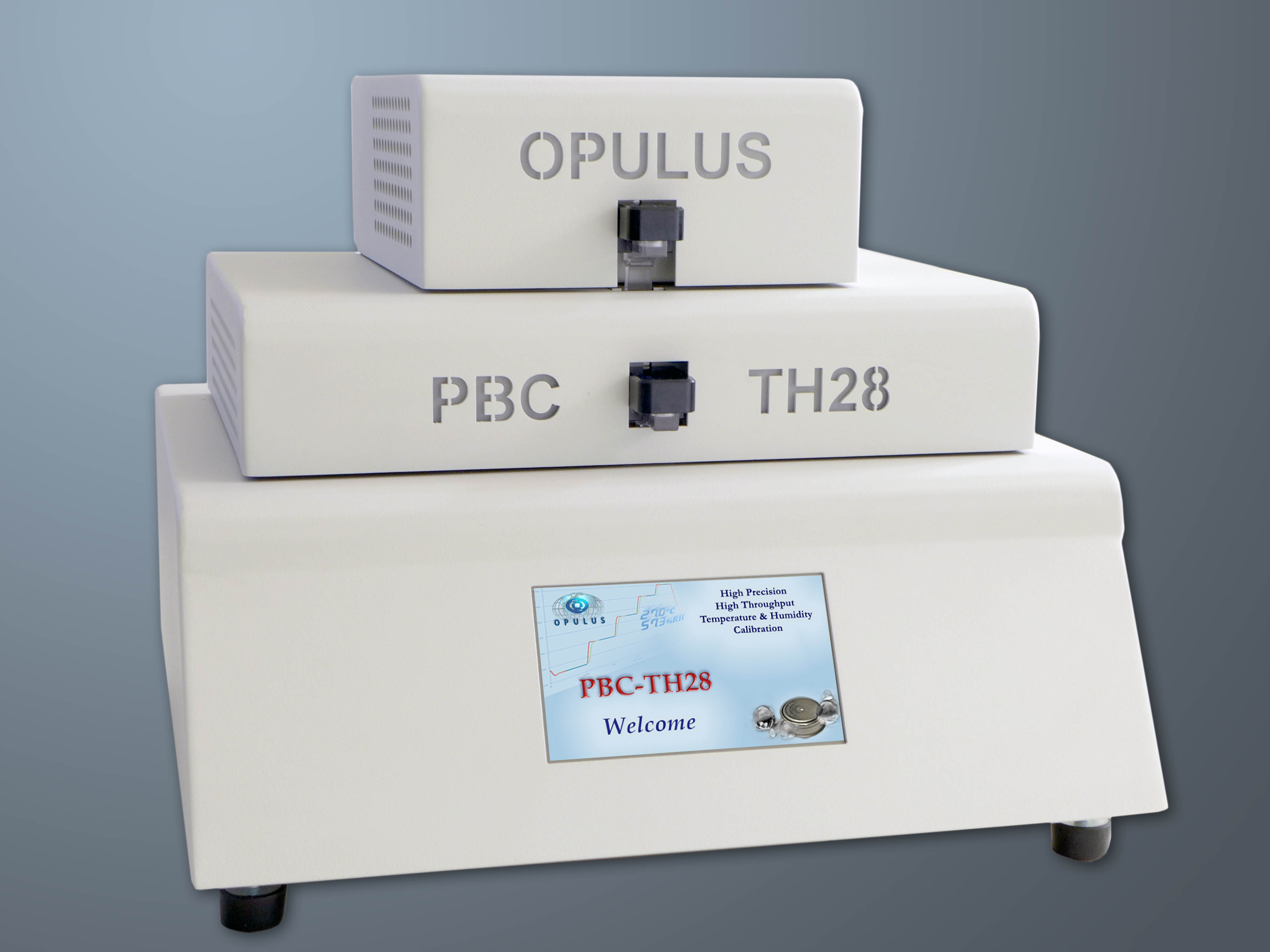

PBC-TH28 is a combined temperature/humidity calibration & verification system. It can execute calibration and/or verification of 28 PyroButton data-loggers in parallel. The calibration & verification range of PBC-TH28 is -30°C to 150°C (0°C to 150°C without external water cooler) and 3.4 %RH to 97.3 %RH (using salt slush as humidity source) and 10 %RH to 90 %RH (using humidity generator as humidity source)
|
Key Features
- 28 x PyroButtons
- Temperature range 0 – 150°C with air cooling, -30–150°C with water cooling
- Humidity range 11.3 %RH to 93.6 with salt slush as a humidity source, 10 %RH to 90 %RH with humidity generator as humidity source
- Standard Uncertainty of Temperature Calibration 0.1°C (-30°C .. 150°C)
- Standard Uncertainty of Humidity Calibration 1.0%RH (at 25°C with OpSens-RH as humidity reference),
1.3%RH (at 25°C with Salt Slush as humidity reference)
- Humidity reference salt slush or OpSens-RH
- Fully automatic operation
- Can be integrated to PyroButton software for fully automatic correction
|
|
|

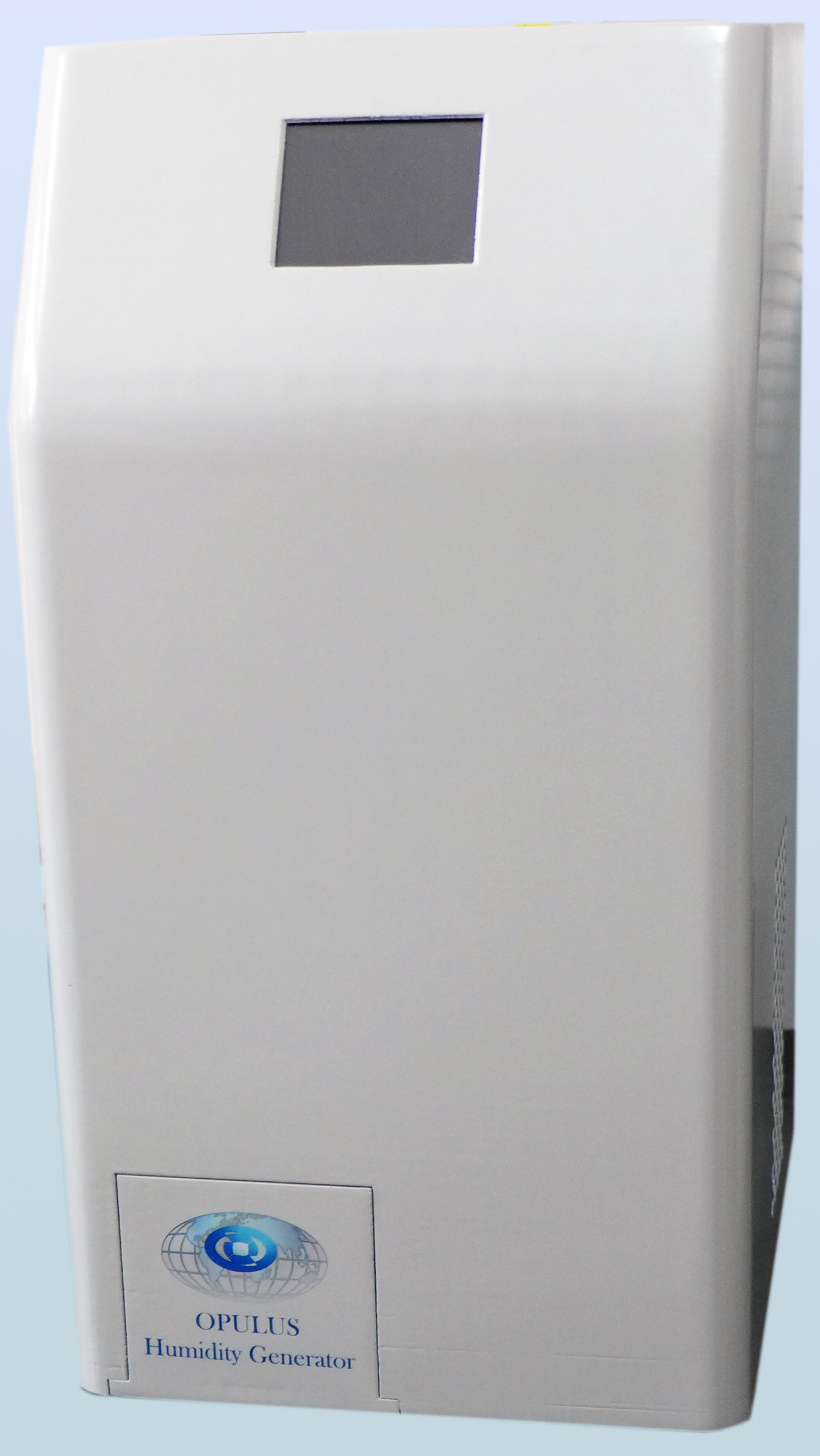

Opulus Humidity Generator (OpHumGen) is an alternative option to maintain a given relative humidity for calibration of PyroButton data loggers. OpHumGen is a divided flow type humidity generator. It can produce an airflow with a defined relative humidity and volume flow rate. This air flow goes through the PBC-TH28 calibrator and ensures the stable humidity environment in the calibration chamber. The advantage of using humidity generator is the full automatic humidity calibration comparing to salt slush method where manual loading of the salt slush is required.
All functions of the OpHumGen are controlled by the PBC-TH28 measurement program (part of Opulus PyroButton-TQM framework).
|
Key Features
- Relative Humidity Range (10-40°C) - 10-90%RH
- Relative Humidity Range (40-50°C) - 10-85%RH
- Temperature range 10–50°C
- Fully automatic operation with PyroButton-TH28
|
|
|
Opulus Air Compressor(OAC) is clean, oil-free air supply for OpHumGen. The OpHumGen and the OAC work together with the PBC-TH28 Calibrator. All functions of the OAC are controlled by the PBC-TH28 measurement program (part of Opulus PyroButton-TQM framework).
|
|
|
|
Opulus Water Chiller (OWC) can be used for operating the PBC-TH28 calibrator below 0°C. All functions of the OpHumGen are controlled by the PBC-TH28 measurement program (part of Opulus PyroButton-TQM framework).
|
|
OpiCal suite is a sophisticated real-time temperature calibration system for the PBC-TH28 calibrator.
The OpiCal-TH28 system consists of 3 units, which are required for the temperature calibration of a PBC-TH28. They include:
- PyroButton-TQM/OpiCal-TH28 Application Program
- OpiCal Reference Sensors
- OpiCal Chamber Calibration Insert (CCI/28)
|
Key Features
- DQ Temperature Calibration (temperature “Design Qualification”) relative to the 28 embedded platinum sensors, which are utilized to control the thermoelectric units) of the aluminum cylinder having the 28 wells, which holds the PyroButtons and block chamber, which holds the salt slush container.
- Temperature Calibration relative to DQ Calibration of the aluminum cylinder having the 28 wells, which holds the PyroButtons and block chamber, which holds the salt slush container
|
|
|
|
